Description
Simultaneously measure and draw complex and irregular job sites with Moasure 2, the next evolution in motion-based measurement technology. Capturing x, y, and z data as it moves from one point to another, Moasure automatically calculates perimeter, area, elevation, volume, and more.
Moasure 2 connects to the free Moasure app via Bluetooth, instantly transforming your measurements into dynamic visuals. View, edit, and save your measurements or export them as a PDF or directly to your CAD software at no additional cost.
Accuracy
Linear Distance: ± 0.5% error (99.5% accurate)
Perimeter: ± 1% error (99% accurate)
Elevation: ± 0.5% error (99.5% accurate)
Area: ± 2% error (98% accurate)
Volume: ± 3% error (97% accurate)
Layout: ± N/A (Moasure 2 PRO exclusive)
Technical Specification
Moasure requires your smartphone or tablet to have at least Bluetooth 5.0 and is compatible with most devices that have the following operating systems: Apple iOS 13 and higher, Android OS 9.0 and higher.
Operating Temp: -10C to +50C (14F to 122F)
Storage Temp: -20C to +70C (-4F to 158F)
Shock: Survives 2m drop on to concrete
Sealing: Sealed to IP67 - water-resistant
Certification: CE certified
Battery Type: Lithium polymer
Battery Life: 5 hours' continuous measuring
Recharge Method: Via USB-C (cable supplied)
Recharge time: 2-3 hours
Shipping
We offer multiple shipping options.
See exact shipping times and cost at checkout.
Warranty & Returns
Moasure devices are built to be durable and long lasting, but in addition to our 60-day free trial, every Moasure device comes with a two-year warranty.
This is valid from the date of the original retail purchase and covers your hardware product and accessories against defects in materials and workmanship.
What's in the box
Everything you receive with your Moasure® 2
What's in the box
Everything you receive with your Moasure® 2
Difficult measuring made easy
Moasure makes measuring complex shapes a breeze. No GPS, data or line of sight required.
Generate accurate dimensioned drawings while you move.

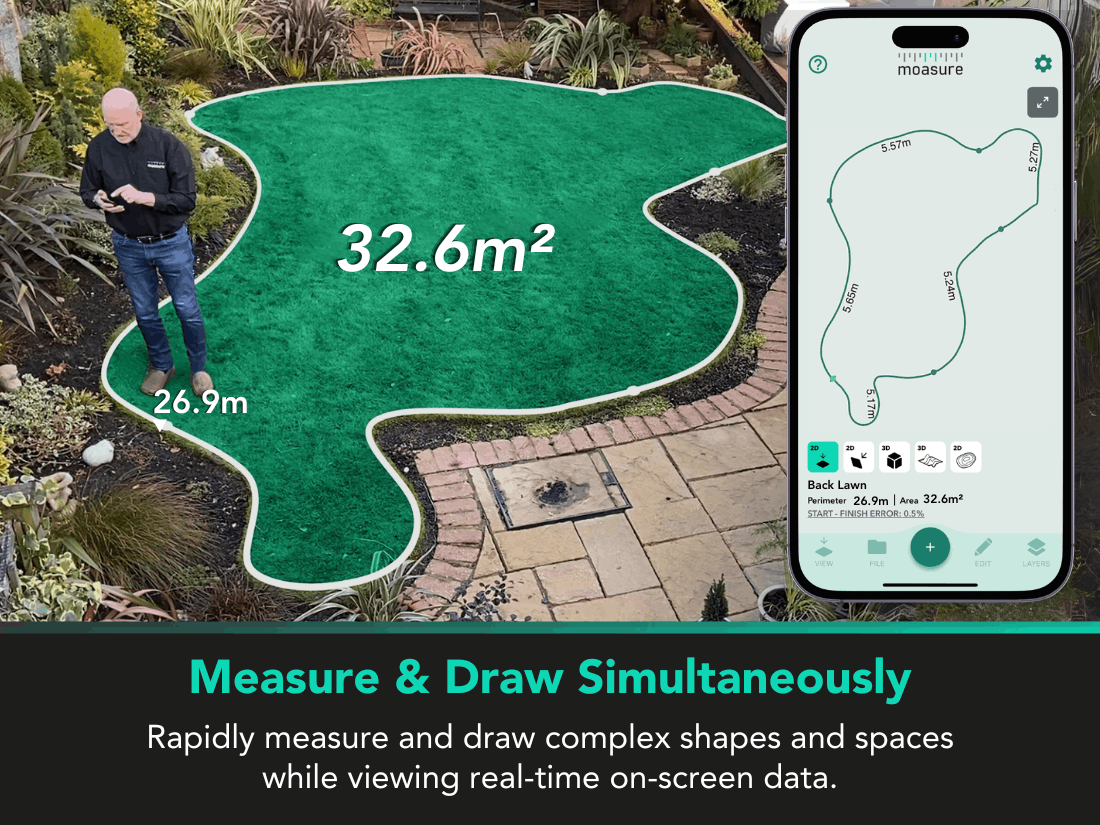

Effortlessly measure and draw complex areas simultaneously. Simply trace along the edges of an area using your Moasure device to digitally capture the shape and dimensions. Add multiple layers within one measurement to simplify your workflow.
Automatically calculate the square footage and perimeter of a measured area.
Simply measure the perimeter of curved lawns, pools and other irregular spaces with your Moasure device and the perimeter and area will be automatically displayed in your Moasure app.

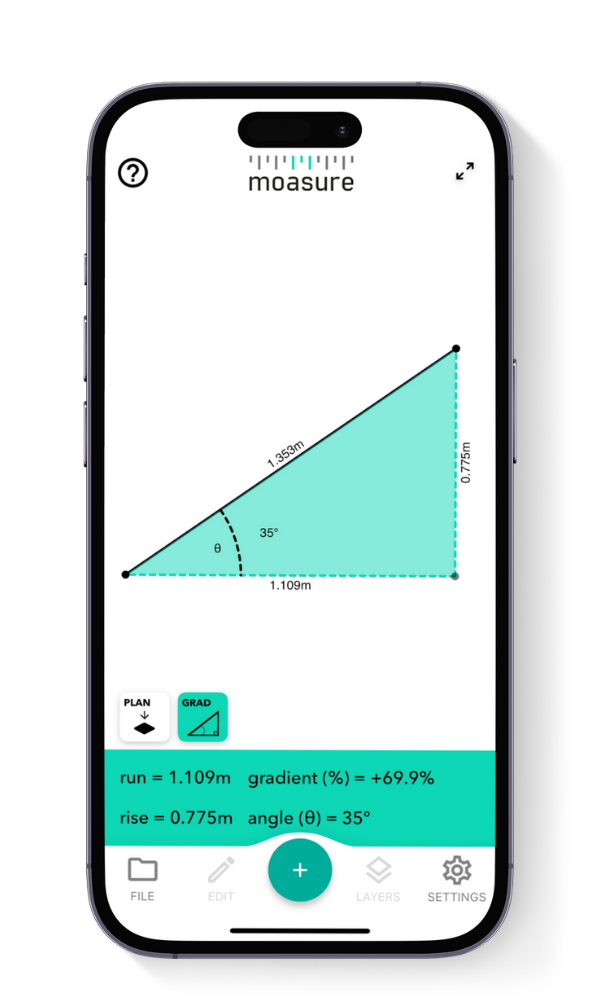

Measure elevation, determine grade, calculate rise & run.
From measuring complex shapes like sloped lawns or steps, to calculating rise and run or assisting with topographical and flood surveys – difficult measuring is made easy with Moasure.
Generate 3D terrain maps, calculate true surface area, volume, and contour lines.
You can also effortlessly calculate the Cut & Fill, making earthwork projects more efficient and profitable. Whilst the ‘Add Depth’ tool allows you to add custom depth and calculate the required volume of material for a site.
Share measurements with clients, colleagues or your favourite design software.
Generate detailed, scaled PDFs, export to DXF or DWG for CAD applications, manipulate data with CSV exports, or visualise measurements using PNG, JPG and SVG formats.
Professionals measure the Moasure way
Tens of thousands of people have already made the switch to Moasure.
Customer Reviews
I did a pool rennovation where I filled in the deep end and needed a "yards of concrete" estimate and a new resulting pool gallon capacity calculation. The moasure provided accurate results for both.
We have been using the devise for a couple of months. We mostly need it on vacant sites with wetlands and ditches. We found it impossible to use in the water as is. So, we designed and built this stand out of pvc. It has a spike on the bottom to put in the water and a platform to put the disc/puck on it. With multiple stands we can leapfrog to the next point in seven seconds. We have not tested it fully yet. We do not have a video yet.
We needed to develop a process for taking accurate measurements of large staircases, ramps, elevations, retaining walls, etc. So we can fabricate railings, staircases, spiral staircases and many other things. Moasure gives us a great and easy to use product that makes terribly hard measurements much easier. We have since developed a process to input our moasure points into Autodesk Inventor, and make life so much easier for drafting railings.
The moasure 2 pro is unbelievable. The measuring capabilities it has is second to none! I started with the first moasure, andnstill have it. In the landscaping and hardscaping industry it's perfect.m it tells me all the angles I need linear footage, area, sq footage and more . Everytime people ask me what is that? I tell them it's the tool you need to get! It saves data, the app has NO SUBSCRIPTION FEES! All the updates you get fir FREE! Who does that! The creators of this device have captured the industry with an industry leading measuring device for alll your needs! Interior, exterior! Uneven grounds, vertical applications! Long battery life! What more can I say!!!!! BUY ONE TODAY! Look me up Paver Pros of NH I'm not fake and this is not paid for this is as real as you get!
設備がとても小さく、非常に驚きました。操作には多少の経験が必要ですが、すぐに慣れることができます。私の仕事に大きな助けとなりました。
Moasure integrates straight into your existing workflow
Frequently asked questions
Are there any ongoing costs or subscription fees?
No, there are no ongoing costs or subscription fees.
Previously, exporting measurements was subject to a small monthly fee. However, following Moasure customer feedback, this monthly fee was removed.
The Moasure app, used in conjunction with the Moasure device, is completely free and this includes future updates and new features.
How can I try Moasure® 2?
There's no better way to try Moasure than getting hands-on.
We're proud to offer a 60-day money back guarantee. This means that after you place an order, you have 60 days to try Moasure and see first-hand all of its features and benefits.
If you’re not satisfied – we’re not satisfied.
If you would like to return your Moasure, simply keep your original product packaging and accessories and ensure the device is in sellable condition (we know you have to use it). Contact us to and return the product within 60 days from purchase.
Learn more about our returns policy here.
Can I measure in both metres and feet?
Yes, you can choose to display measurements in either metric or imperial units from within the Moasure smartphone/tablet app.
Can I export my measurement data and drawings?
You can save even more time designing or quoting jobs and projects by exporting your measurements - directly from Moasure's companion app, at no additional cost.
Export any of your measurements and drawings from the app in any of the following formats:
- PDF – export 2D and 3D drawings and measurements
- DXF & DWG – export 2D and 3D files (compatible with popular CAD programs like AutoCAD, SketchUp and Vectorworks)
- PNG – export an image file of drawings and measurements
- CSV – export coordinate data
- SVG (Scalable Vector Graphic)
Orders, shipping & returns
What is your return policy?
If you’re not satisfied, we’re not satisfied.
If you would like to return your Moasure, simply keep your original product packaging and accessories, ensure the device is in sellable condition (we know you have to use it) and then get in touch with us to and return it to us within 60 days from purchase.
